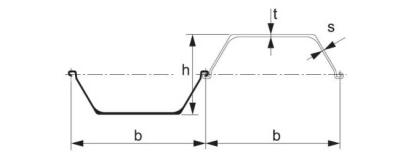

Section Dimensions Mass Moment
of inertia
Modulus
of section
Width Height Thickness Per pile Wall
b h t s
mm mm mm mm kg/m kg/m2 cm4/m cm3/m
PU 6 600 226 7.5 6.4 45.6 76 6780 600
PU 7 600 226 8.5 7.1 49.9 83.1 7570 670
PU 8 600 280 8.0 8.0 54.5 90.9 11620 830
PU 9 600 280 9.0 8.7 58.8 98.0 12830 915
PU 11 600 360 8.8 8.4 61.8 103.0 19760 1095
PU 16 600 380 12.0 9.0 74.7 124.0 30400 1600
PU 20 600 430 12.4 10.0 84.3 140.5 43000 2000
PU 25 600 452 14.2 10.0 93.6 156.0 56490 2500
L2S 500 340 12.3 9 69.7 139.4 27200 1600
L3S 500 400 14.1 10 78.9 157.8 40010 2000
L4S 500 440 15.5 10 86.2 172.0 55010 2500
L5S 500 450 20.6 11.5 106.0 212.0 72000 3200
JSP2 400 200 10.5 0 48 120.0 8740 874
JSP3 400 250 13.0 0 60.0 150.0 16800 1340
JSP4 400 170 15.5 0 76.1 190.0 38600 2270
GU12-500 500 340 9 8.5 56.6 113.2 19640 1155
GU13-500 500 340 10.0 9.0 60.8 121.7 21390 1260
GU15-500 500 340 12.0 10.0 69.3 138.6 24810 1460
PU6R 600 280 6.0 6.0 42.2 70.0 8940 640
PU7R 600 280 6.5 6.3 44.3 74.0 9580 685
PU8R 600 280 7.5 6.9 48.7 81.0 10830 775
PU9R 600 360 7.0 6.4 49.5 82.0 16930 940
PU10R 600 360 8.0 7.0 53.8 90.0 18960 1055
PU11R 600 360 9.0 7.6 58.1 97.0 20960 1165
PU13R 675 400 10.0 7.4 65.6 97.0 25690 1285
PU14R 675 400 11.0 8.0 70.5 104.0 28000 1400
PU15R 675 400 12.0 8.6 75.4 112.0 30290 1515

Le palancole LL2S L3S sono le prime generazioni, più leggere delle sezioni in acciaio L4S L5S, ampiamente utilizzate in Europa. I fornitori di palancole producono L2 S e L3 S per terreni duri.L4 S e L5 S sono per terreni ancora più duri o rocciosi.
